Vacuum transducer calibration rig.
Vacuum transducer calibration rig.
![](https://lemmy.ca/pictrs/image/d8cdba42-1642-4d43-a037-5190f6c42540.jpeg?thumbnail=1024&format=webp)

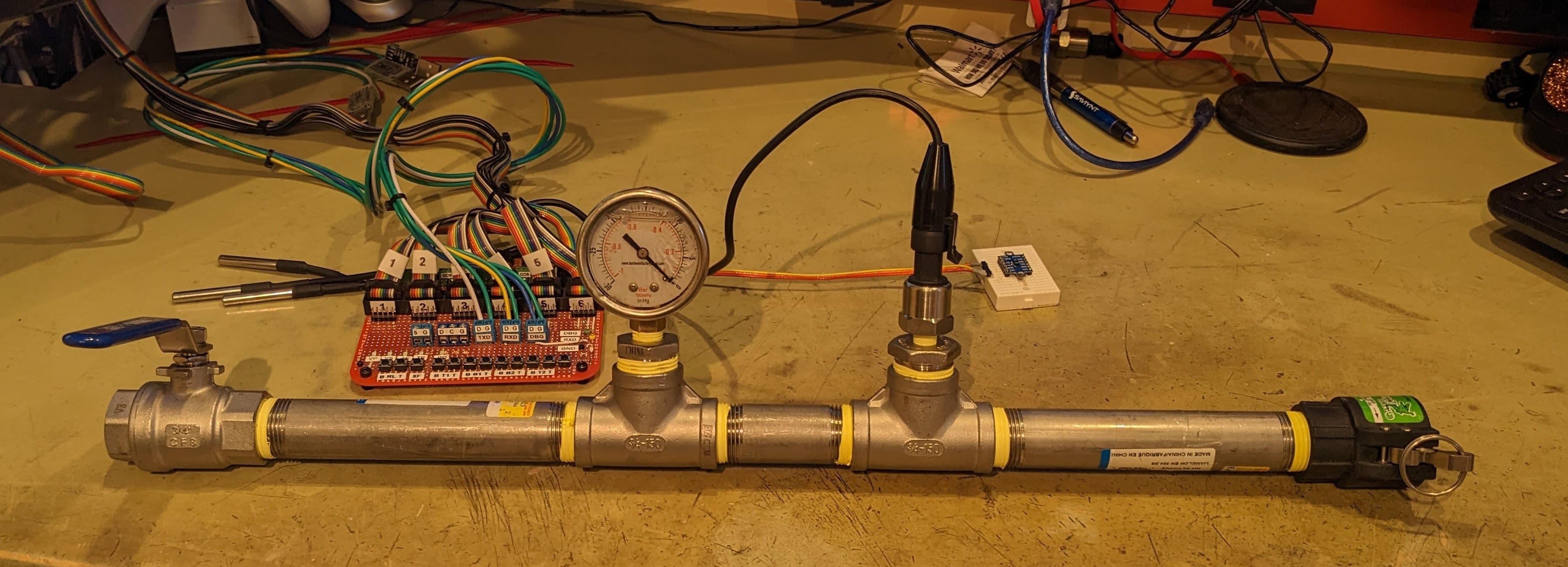

This is the setup I used to calibrate the vacuum sensor. The vacuum line connects on the right. The right T is the vacuum sensor. The left T is a vacuum gauge. The ball valve allows me to easily release the vacuum.
I use the vacuum transducers to monitor the vacuum level on the pump side and the collection (tree) side of the vacuum releaser.
