Shift register missing bits

Hey friends,

I have a two daisy chained shift registers (74AHC595) which are controlled via an ESP32. I want to set one output to high at a time before switching to the next.

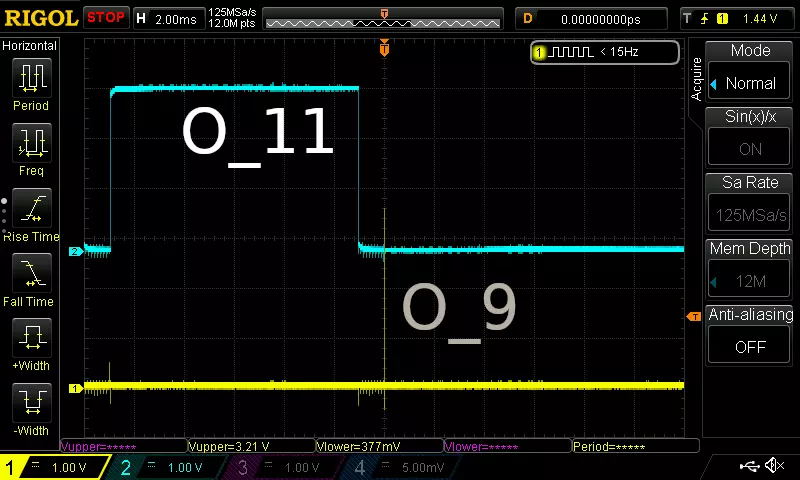

The code seems to work, but the outputs O_9 and O_10 are not staying high (zoom) after setting them, whereas all the other ones are working fine. This is the used code snipped:

        pinMode(SHIFT_OUT_DATA, OUTPUT);
    pinMode(SHIFT_OUT_CLK, OUTPUT);
    pinMode(SHIFT_OUT_N_EN, OUTPUT);
    pinMode(SHIFT_OUT_LATCH, OUTPUT);

    digitalWrite(SHIFT_OUT_N_EN, LOW);

    uint16_t input_bin = 0b1000000000000000;

    for(int i=0; i&lt;17; i++){

        byte upper_byte = input_bin >> 8;
        byte lower_byte = input_bin &amp; 0x00FF;

        digitalWrite(SHIFT_OUT_LATCH, LOW);
        shiftDataOut(SHIFT_OUT_DATA, SHIFT_OUT_CLK, MSBFIRST, lower_byte);
        shiftDataOut(SHIFT_OUT_DATA, SHIFT_OUT_CLK, MSBFIRST, upper_byte);
        usleep(10);
        digitalWrite(SHIFT_OUT_LATCH, HIGH);

        delay(10)
        input_bin = input_bin>>1;
    }

Is there anything I'm doing wrong, or any idea on where the problem may lie? I've already tried looking for shorts and other error sources, but the design was manufactured on a PCB and no assembly issues are noticeable.
